Flexible Slope Protection Concrete Blanket

Traditional cast-in-place concrete and mortar slope protection methods suffer from three common infrastructure issues: difficulty in formwork installation for complex curved surfaces; site pollution from dust and wastewater during rainy season construction; and a repair rate exceeding 40% due to post-settlement cracking and water seepage. Low-end cement blankets on the market typically use a simple two-layer bonding process, which is prone to cement powder loss and delamination after hydration, and fails to cure properly in low-temperature environments.

Tongfu’s Flexible Slope Protection Concrete Blanket employs a rare three-layer quilted locking process. Unlike standard bonded cement blankets, it features pre-formulated, crack-resistant dry-mix cement, eliminating the need for on-site mixing or auxiliary materials. Its fiber-based locking structure prevents powder leakage, combining flexible contouring with the durability of permanent concrete protection. It has been successfully deployed in thousands of projects across China—ranging from agricultural irrigation ditches to emergency riverbank stabilization—and complies with the Ministry of Water Resources' standards for ecological infrastructure construction.

Product Definition and Application

Also known as concrete canvas or Geosynthetic Cementitious Composite Mats (GCCM), the cement blanket is an innovative flexible composite engineering material that revolutionizes traditional concrete casting methods. Supplied in flexible rolls, the blanket contains a pre-integrated layer of specialized dry-mix cement. It requires no on-site mixing, formwork, or heavy machinery; simply unroll and flatten the material on-site, then hydrate it with water. It rapidly hardens to form a high-strength, impermeable, erosion-resistant, and corrosion-proof monolithic concrete protective layer. Combining the flexibility and ease of installation characteristic of fabrics with the strength and durability of concrete, this material offers rapid installation, excellent structural integrity, and high crack resistance. It is widely suitable for various civil engineering projects—such as hydraulic slope protection, canal lining, slope stabilization, emergency repairs, and ground hardening—serving as a lightweight, efficient, and cost-effective solution for infrastructure protection.

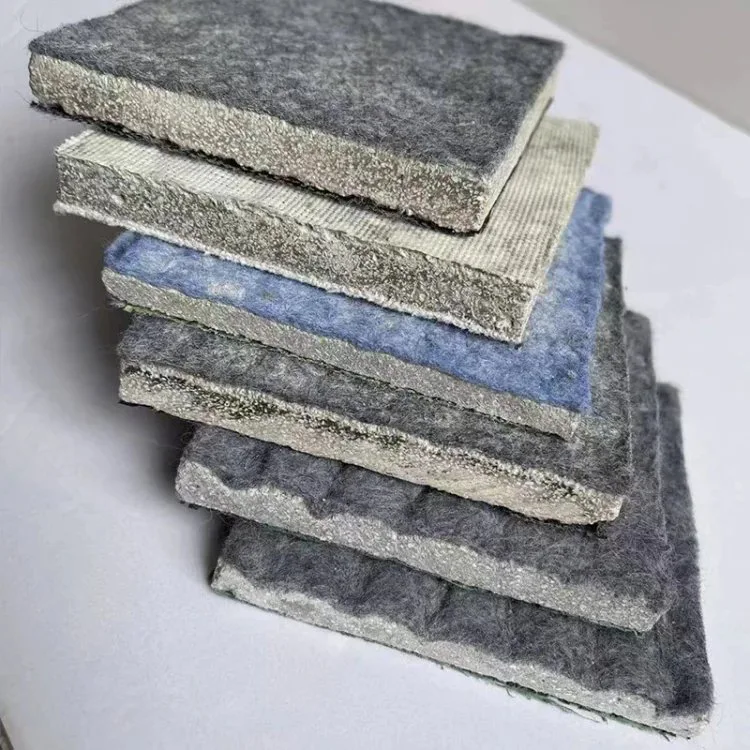

Product Material and Structure

The Flexible Slope Protection Concrete Blanket is precision-engineered using an integrated three-layer composite process: a 3D fiber composite structure, a specialized hydrating cementitious mix, and an impermeable bottom membrane. It features a stable structure, a scientifically optimized mix ratio, and high cured strength.

1.  Surface Layer: Wear-Resistant Fabric

Constructed from high-strength polypropylene and polyethylene filaments woven in a tight pattern, this layer offers high tensile strength, abrasion resistance, and uniform permeability. It allows for even water absorption during curing and forms a dense, wear-resistant protective surface that effectively withstands erosion and weathering.

2.  Core Layer: Cementitious Matrix

Filled with a custom high-strength dry-mix cement blend, mineral admixtures, and anti-crack additives, this layer is free of loose powder and maintains a stable composition. It undergoes rapid hydration upon contact with water, curing evenly and gaining strength quickly to form a dense, high-performance structure with excellent compressive and flexural strength.

3.  Bottom Layer: Impermeable Protective Membrane

Utilizes a high-density, waterproof, and impermeable membrane that provides a tight seal against water penetration. It retains moisture to ensure complete cement hydration while blocking downward water seepage and preventing soil erosion at the base, offering effective waterproofing, moisture resistance, and soil separation.

4.  Integrated Manufacturing Process

Produced using an integrated quilting and composite process, the three layers are tightly bonded to prevent delamination or separation. This design effectively inhibits cracking during curing, resulting in overall structural integrity that far surpasses traditional sprayed or cast-in-place concrete.

Key Performance Indicators

The Flexible Slope Protection Concrete Blanket adheres to engineering standards for cementitious composite materials. It is available in standard thicknesses of 5mm, 6mm, 8mm, and 10mm, and standard widths of 2m and 3m (with custom cutting options). Its core engineering performance consistently meets requirements:

1. Curing Speed: Cures via hydration (sprinkling water) at ambient temperatures; sets initially within 2–4 hours, reaches basic operational strength in 24 hours, and attains design strength in 7 days. It cures effectively even in low-temperature environments and offers high construction tolerance.

2. Mechanical Strength: Exhibits high compressive strength after curing, along with excellent flexural, tensile, and crack-resistance properties. It accommodates minor foundation settlement and thermal deformation, minimizing risks of delamination, cracking, or spalling.

3. Impermeability: Features an integrated bottom-layer impermeable membrane, creating a seamless, fully sealed structure with an extremely low permeability coefficient. It achieves zero leakage in ditches, ponds, and slopes, ensuring reliable waterproofing and seepage control.

4. Erosion Resistance: The cured surface is dense and hard, resisting water flow impact, rainfall erosion, and sediment abrasion. It remains intact under high-velocity water flow, ensuring durable protection.

5. Weather and Corrosion Resistance: The cured structure is stable and resistant to acids, alkalis, moisture, freeze-thaw cycles, and microbial corrosion. It withstands temperatures ranging from -30°C to +70°C without chalking or weathering during long-term outdoor use.

6. Structural Integrity: Eliminates risks associated with seam failure; offers excellent monolithic formation, deformation resistance, and collapse resistance. It outperforms traditional cast-in-place concrete in terms of crack resistance, structural integrity, and adaptability.

Key Product Advantages

1. Simplified Construction and High Efficiency: Eliminates the need for cement mixing, formwork, or heavy machinery. Supplied in rolls that can be cut to size and installed manually, it drastically shortens construction schedules and offers several times the efficiency of traditional concrete methods.

2. Flexible installation and excellent conformability: Soft and pliable before curing, it adapts to irregular slopes, curved channels, and uneven substrates. It fits tightly against the base without voids or bridging, making it suitable for construction on complex terrain.

3. Impermeable, erosion-resistant, and highly protective: Upon curing, it forms a dense concrete protective layer that is waterproof and impermeable, resisting water erosion and abrasive wear from sediment. It effectively addresses issues such as channel leakage, slope soil erosion, and earthwork collapse.

4. Crack-resistant, durable, and highly stable: A 3D fiber framework firmly locks the cement matrix, effectively dispersing stress and preventing large-scale cracking or delamination. The structure is stable and long-lasting, offering superior overall protection compared to traditional mortar surfacing.

5. Cost-effective and high value: The material is lightweight, resulting in low transportation and labor costs with minimal material waste. It is installed in a single pass and requires virtually no subsequent repair or maintenance, significantly reducing the total project cost.

6. Eco-friendly and pollution-free: Dry-state installation generates no dust, wastewater, or waste materials, ensuring a clean worksite. Once cured, it is non-toxic and harmless, posing no threat to water or soil quality, making it ideal for water conservancy and ecological restoration projects.

7. Rapid response and emergency suitability: The Flexible Slope Protection Concrete Blanket can be installed and cured quickly. It is ideal for emergency projects such as flood defense, slope reinforcement, and rapid channel construction or repair, achieving a fully formed protective layer in a short timeframe.

Key Application Scenarios

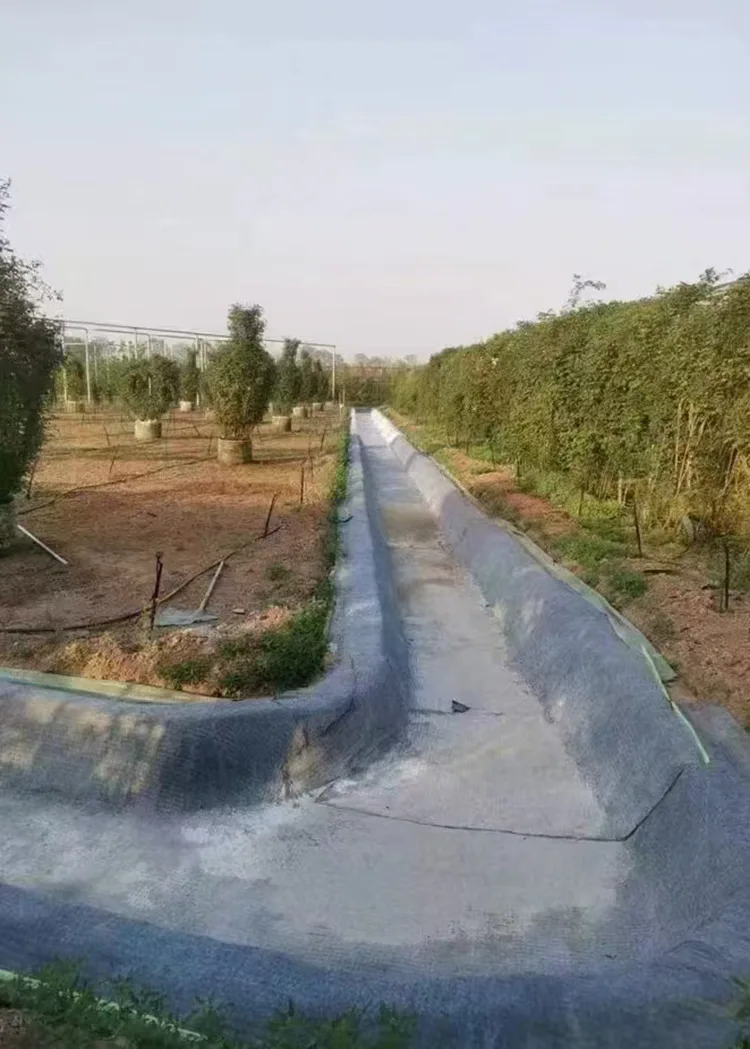

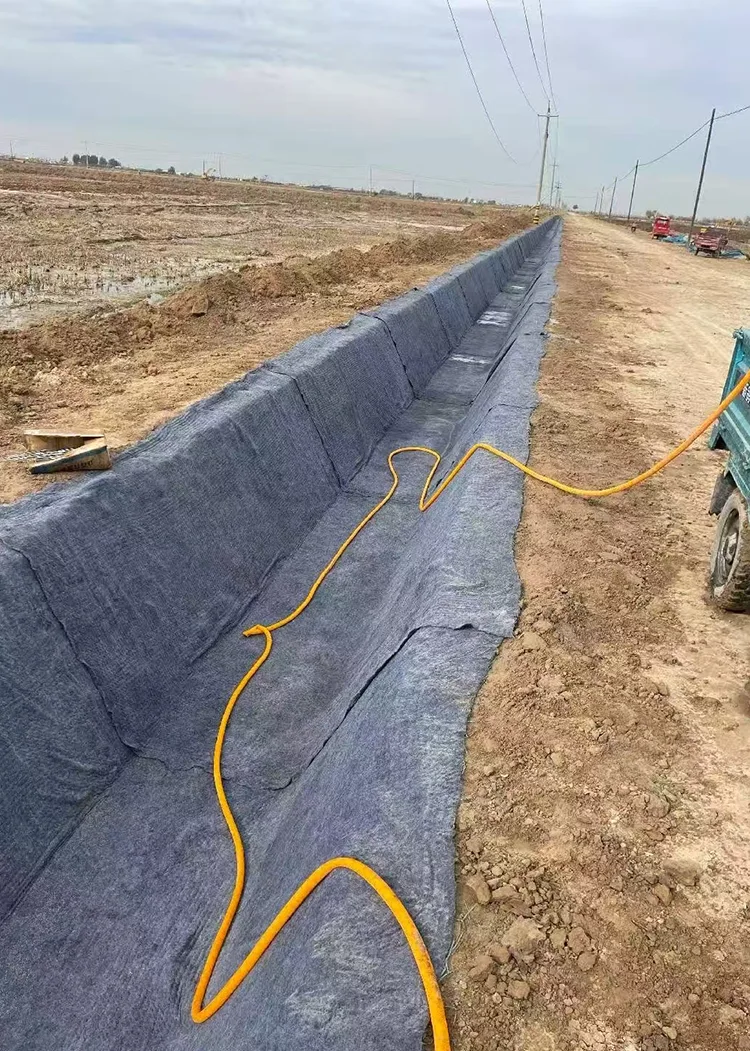

1. Water conservancy channel projects: Anti-seepage lining and slope protection for agricultural irrigation canals, drainage ditches, diversion channels, and flood discharge channels. It solves leakage and erosion-induced collapse issues, conserves water, and reinforces the channel structure.

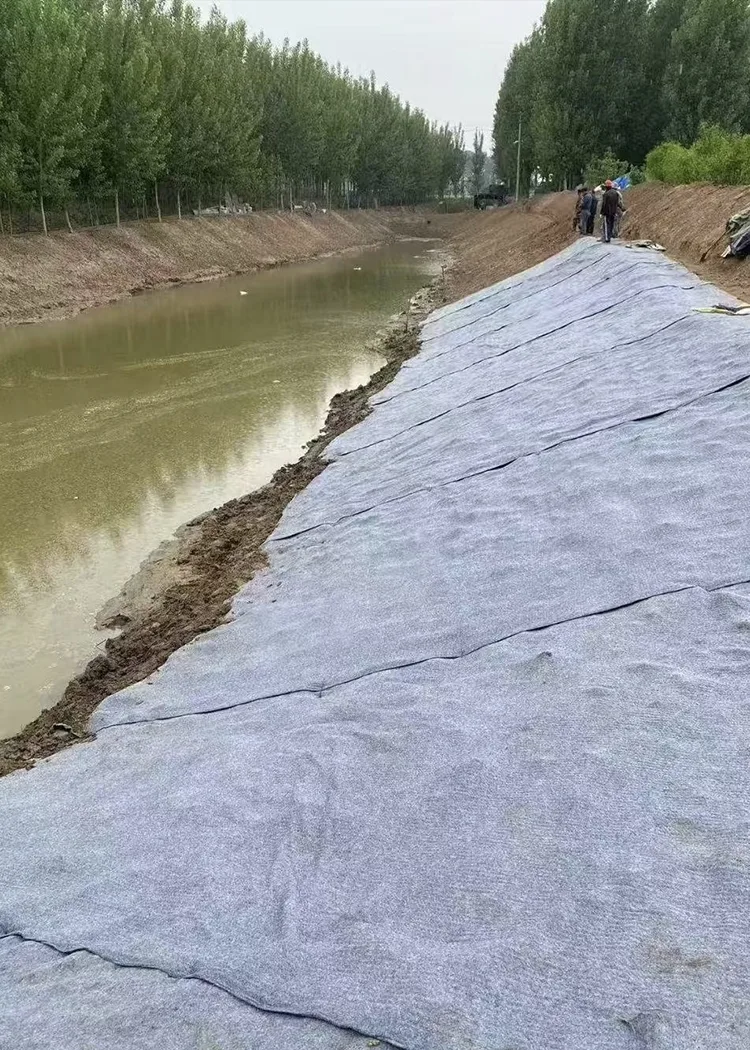

2. River and waterway management: Soil stabilization and protection for small rivers, stream banks, pond embankments, and artificial waterways. It prevents soil erosion and scouring while stabilizing bank slopes.

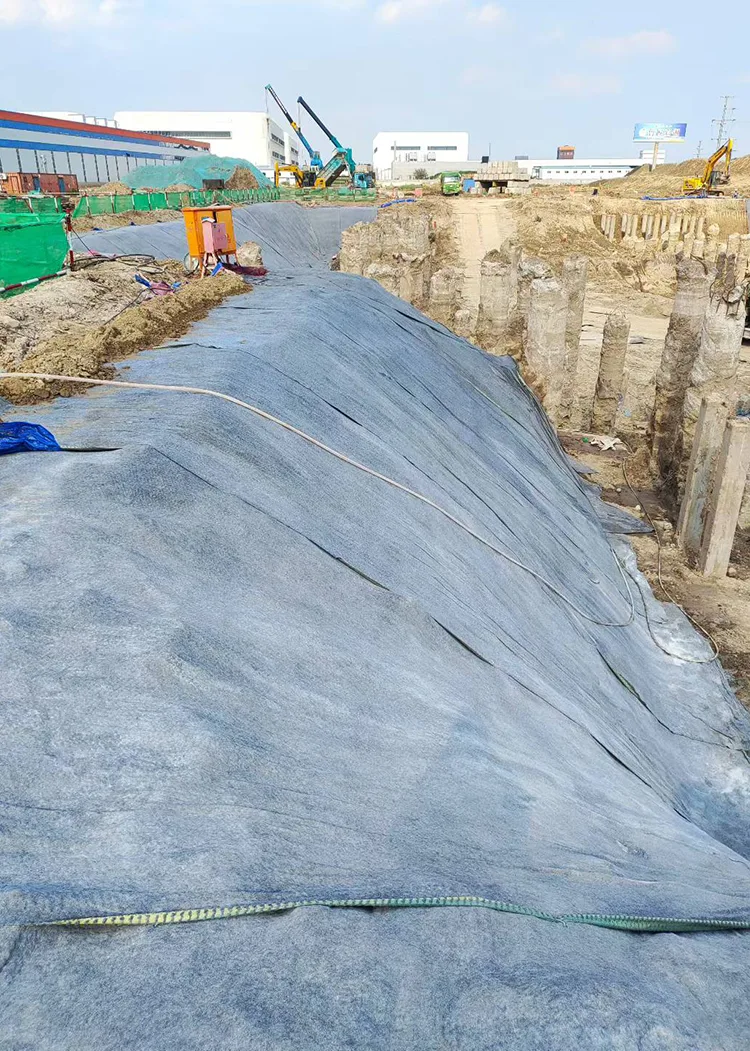

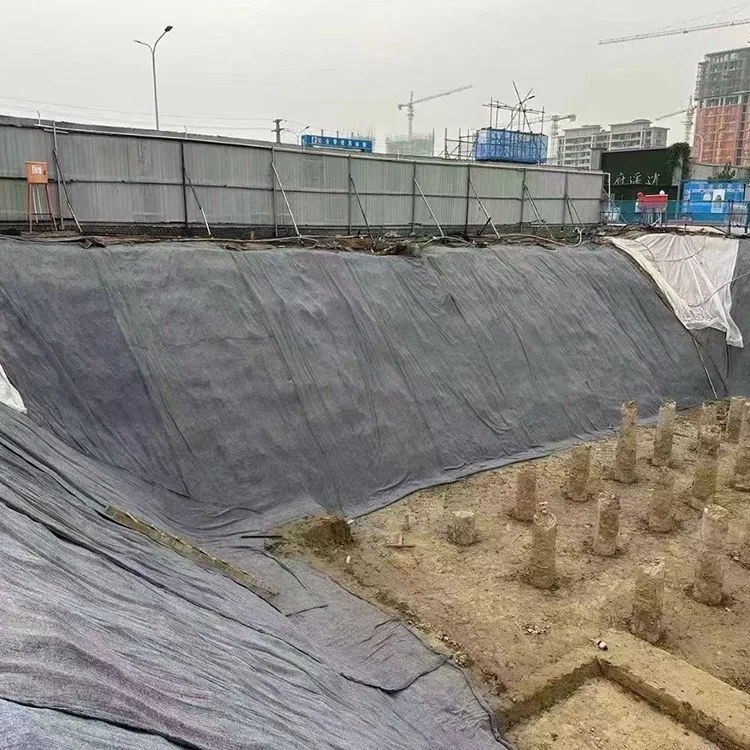

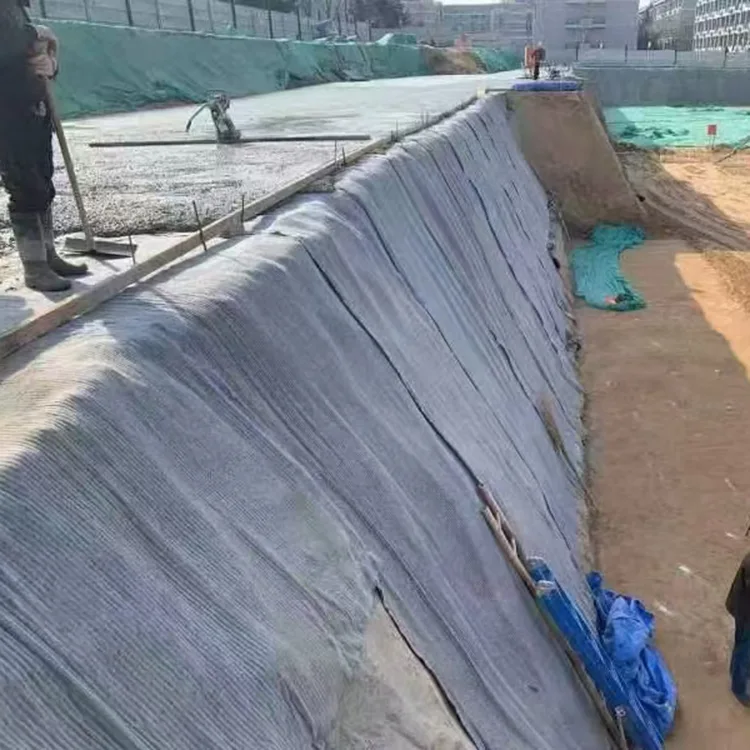

3. Slope protection projects: Stabilization and protection for roadbed slopes, excavation slopes, mountain slopes, and barren land. Rapid curing prevents damage from rainwater runoff and slope collapse.

4. Site Hardening Projects: Temporary roads, storage yard surfaces, aquaculture sites, and simple factory-area paving; features rapid setting, wear and pressure resistance, and impermeability/dust control.

5. Municipal & Environmental Projects: Urban drainage channels, stormwater retention ponds, eco-friendly slope protection, soil stabilization for green belts, and small-scale municipal renovation projects.

6. Emergency Response Projects: Flood defense slope protection, river embankment reinforcement, landslide repair, and temporary impermeable barriers; suitable for rapid construction and deployment in emergency scenarios.

7. Aquaculture Impermeability Projects: Impermeable lining for aquaculture channels, reservoirs, and sedimentation pond slopes; durable, leak-proof, and resistant to water-based corrosion.

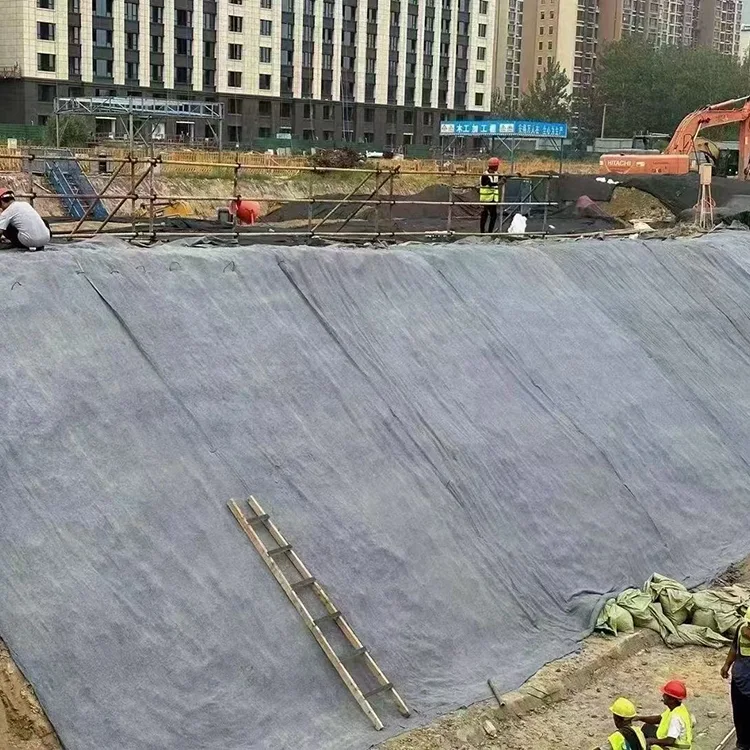

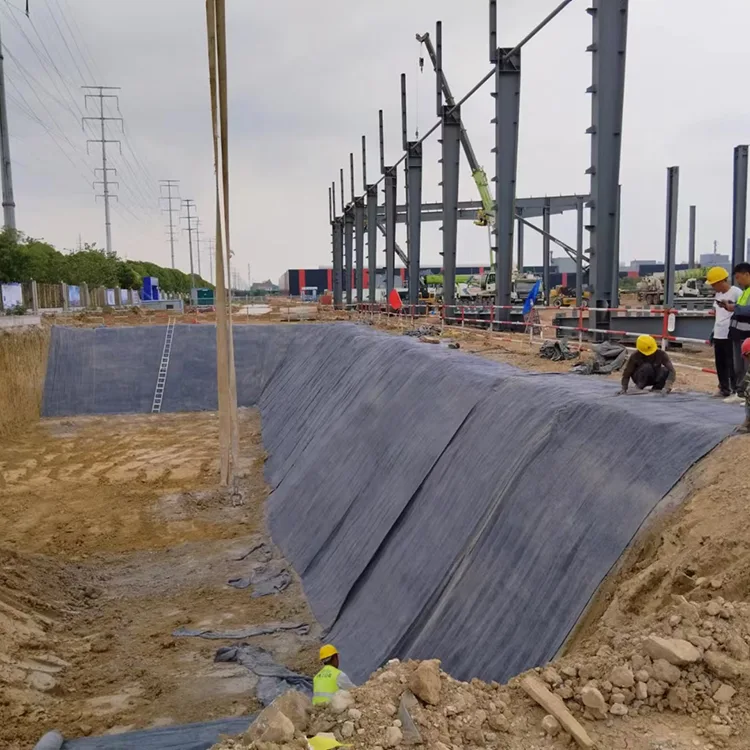

On-Site Installation Guidelines

1. Substrate Preparation

Before laying the Flexible Slope Protection Concrete Blanket, clear the slope surface of sharp stones or tree roots larger than 2cm to prevent puncturing the underlying impermeable membrane. Limit surface undulations to within 5cm; fill and level excessive depressions with native soil beforehand. Direct installation over loose, uncompacted soil is not recommended.

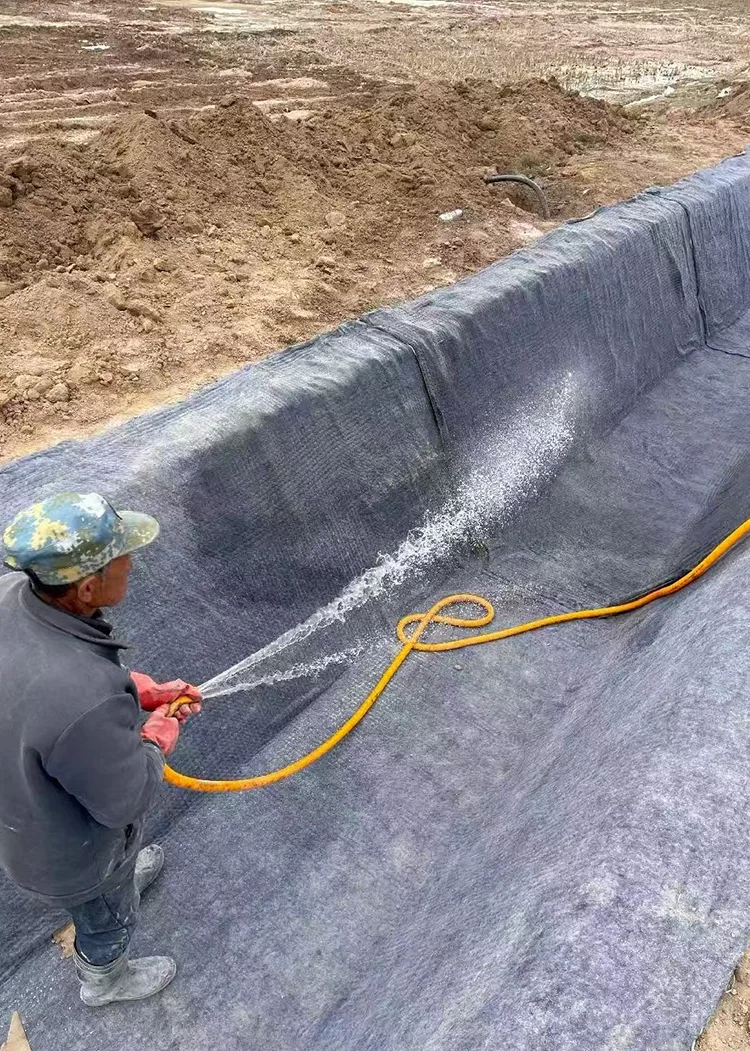

2. Watering and Curing Protocols

Use a mist spray; do not use high-pressure water jets directly on the blanket surface, as this may wash away surface fibers. Saturate the blanket with a single watering; avoid excessive pooling, as standing water can dilute the surface cement and cause surface dusting. In low-temperature environments, cover with geotextile after watering to retain heat and enhance curing strength.

3. Overlapping and Anchoring Requirements

Ensure a transverse overlap width of ≥15cm. Lay the material from the top of the slope downwards, overlapping the upper layer over the lower layer to prevent rainwater backflow. Anchor the top and toe of the slope using galvanized expansion bolts spaced 1m apart; add intermediate anchor points for slopes exposed to strong winds.

4. Post-Installation Restrictions

Do not allow pedestrian traffic or vehicle movement within 24 hours of initial setting. After curing, do not strike the surface with sharp tools such as hydraulic breakers or shovels. No additional reinforcement is required after the thawing of frozen soil in winter, as the product naturally adapts to soil deformation.

FAQ

1. Will the concrete blanket crack after curing?

It will not crack if installed according to standard specifications. The internal 3D filament fibers disperse stresses caused by foundation settlement and thermal contraction/expansion—unlike plain concrete, which lacks fiber-based crack resistance. Hairline cracks may appear only if foundation settlement exceeds 10 cm or if excessive water is applied; however, these cracks do not propagate or widen and do not compromise the material's impermeability or slope protection performance.

2. Will it disintegrate or crumble after prolonged underwater immersion?

No. The middle cement layer contains mineral anti-corrosion additives, allowing for long-term immersion in fresh water and mildly saline-alkaline water. It resists microbial corrosion, offers an underwater service life of over 20 years, and does not suffer from surface dusting or spalling.

3. Can installation proceed during rainy weather?

Installation is permissible during light rain without the need for protective covering. However, installation is prohibited during heavy rain or downpours, as rainwater can wash away the uncured surface cement paste, resulting in insufficient surface strength. After the rain stops, wait until there is no standing water on the slope before proceeding with the hydration (sprinkling) process.

4. Can the Flexible Slope Protection Concrete Blanket replace traditional mortared rubble masonry for slope protection?

It is an excellent alternative for channels with low-to-moderate flow velocities and standard slopes, offering a 45% reduction in cost and an 80% reduction in construction time. For main river channels with flood flow velocities exceeding 4.5 m/s, it is recommended to use the blanket in conjunction with geogrids to enhance overall erosion resistance.
