Canal Protection Concrete Blanket

Standard general-purpose concrete blankets focus on broad-area surface hardening and lack formulation optimizations for the specific challenges of channels—such as reciprocating water flow, wet-dry cycling, and curved corners—often leading to surface dusting, corner delamination, and leakage through bed cracks within 1–3 years of installation. Tongfu’s Canal Protection Concrete Blanket adjusts the additive ratio in the middle cement layer to enhance water-scour resistance, increases the weave density of the surface layer, and retains a three-layer quilted composite structure. It is purpose-built for the linear, narrow, and curved nature of channels and dynamic flow conditions. It requires no heavy construction machinery and is ideal for remote sites lacking power supplies or access roads.

Key Product Features

1. Seamless Fit for Curved Corners: Fiber flexibility is optimized for 90° and arc-shaped transitions between slopes and channel beds. With a 20% improvement in bending and spring-back performance, the blanket sits flush against corners without air pockets or voids. This eliminates seepage through corner gaps and solves the common problems of corner cracking and subsequent leakage repairs associated with cast-in-place concrete.

2. Wet-Dry Durability and Aging Resistance: The formulation of the middle cement layer has been improved to withstand wet-dry cycles, making it suitable for channels that experience alternating periods of standing water and drought. It prevents the surface dusting and spalling often seen in standard blankets after wet-dry cycling, making it ideal for the periodic flow conditions of northern channels used for winter irrigation and summer dry spells.

3. Field-Ready Narrow Width: Standardized as a 2m-wide roll, it fits narrow agricultural irrigation channels and mountainous drainage ditches. It eliminates the need for extensive on-site cutting and reduces offcut waste, making it perfect for confined work areas inaccessible to agricultural machinery.

4. Rapid Initial Setting at Low Temperatures: The Canal Protection Concrete Blanket is designed for accelerated construction schedules in autumn and winter agricultural water conservancy projects. It allows for normal water-curing at outdoor temperatures as low as -10°C without the need for thermal insulation, meeting the requirements of projects with short irrigation-shutdown windows.

Product Functional Advantages

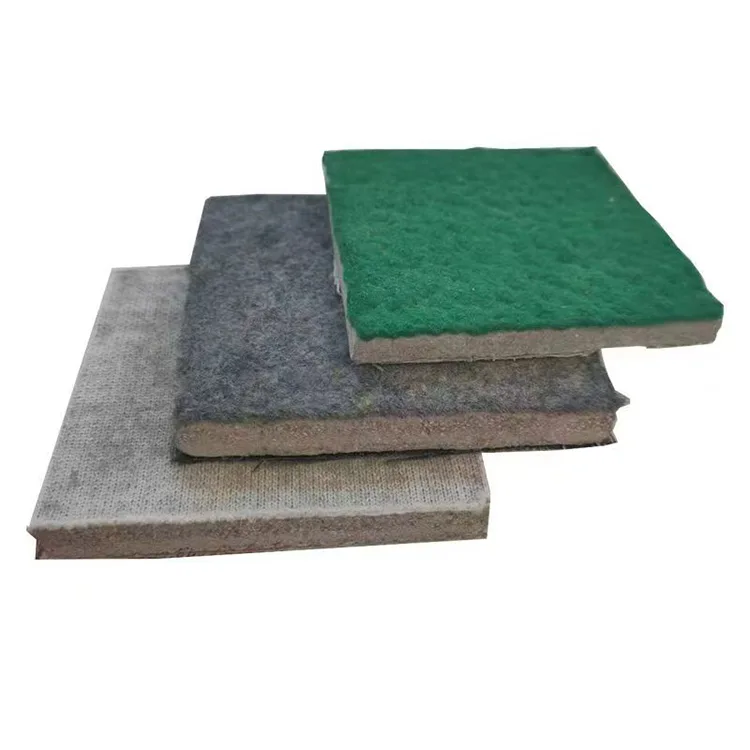

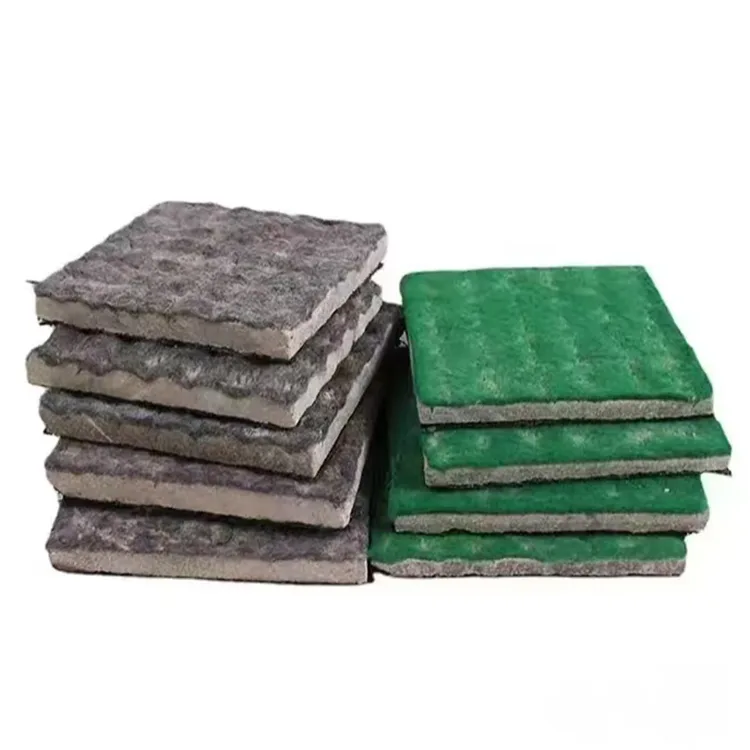

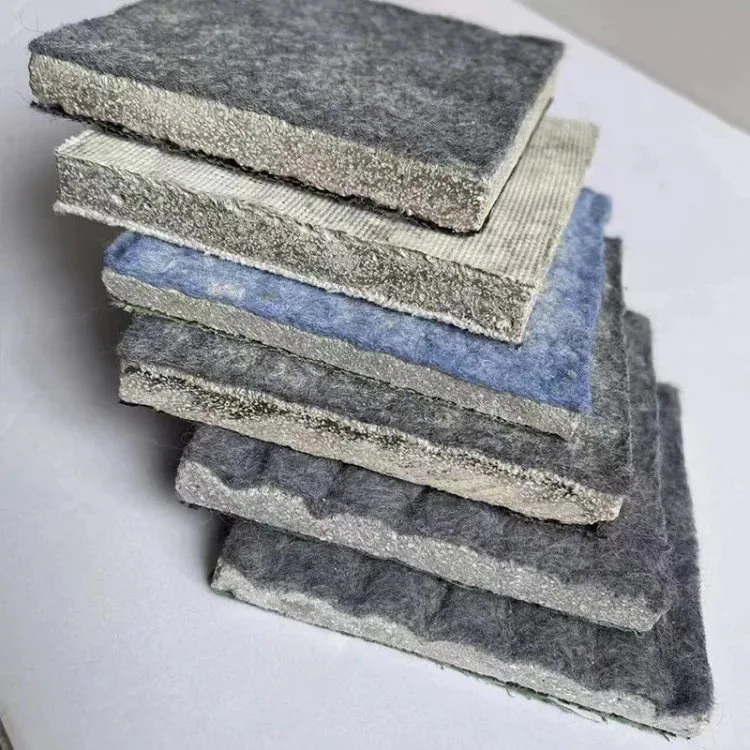

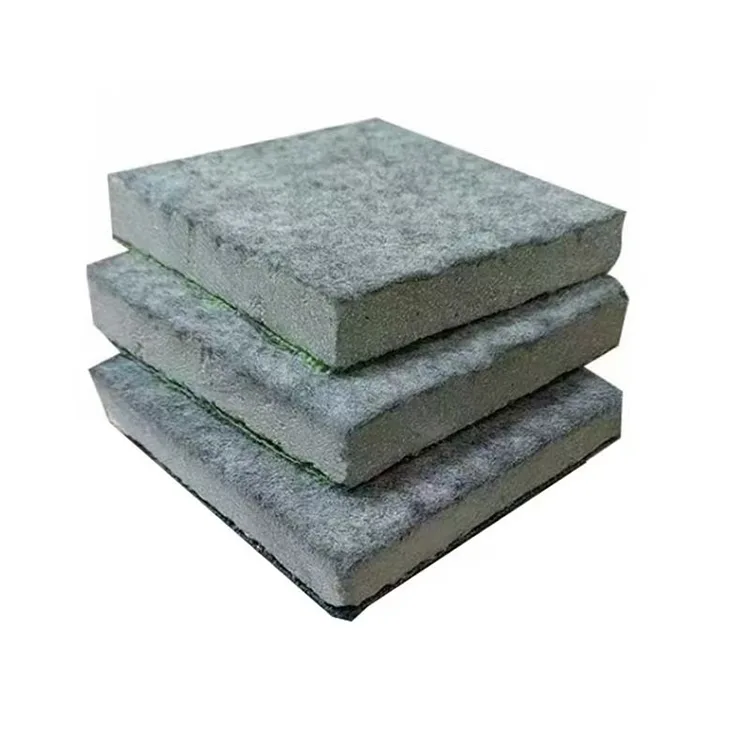

High-density PE/PP woven surface layer: Protects against surface abrasion from silt and water flow, evenly disperses shear forces from surface water, and prevents surface delamination caused by rainwater or runoff erosion on canal sidewalls. It also ensures uniform distribution of curing water, preventing strength inconsistencies due to uneven hydration.

Modified dry-mix cement core layer: Incorporates specialized anti-crack mineral admixtures to counteract stresses from seasonal frost heave and soil settlement. Upon curing, it forms a continuous, rigid protective layer that prevents the loosening and collapse of the canal's earthen structure.

High-density impermeable bottom membrane: Provides dual functionality—canal seepage control and moisture retention for curing. It locks in curing water to ensure complete cement hydration, preventing strength loss caused by rapid evaporation in windy outdoor conditions, while simultaneously blocking vertical seepage to prevent secondary soil salinization in adjacent fields and groundwater loss. An integrated quilting and edge-sealing process eliminates the risk of interlayer delamination caused by long-term water flow turbulence.

Application Scenarios

The Canal Protection Concrete Blanket is primarily used for linear canals and associated hydraulic structures across various settings. Applications include comprehensive field canal networks (water diversion, irrigation, drainage, and flood discharge), municipal stormwater drainage channels, river tributary diversion canals, and internal wastewater diversion or sedimentation tank connecting channels within livestock facilities. It also supports ecological soil stabilization on canal slopes and serves as a temporary emergency diversion channel during flood seasons. Additionally, it is suitable for high-erosion-risk linear hydraulic sites such as drainage ditches on steep mountain slopes and interception ditches in mining areas, addressing both permanent seepage protection and temporary flood-season emergency protection needs.

What are the advantages compared to similar products?

1. Structural & Craftsmanship Differences: Standard canal liners often use a three-layer structure bonded by heat-pressing, which tends to delaminate when the adhesive fails after prolonged water immersion. Our Canal Protection Concrete Blanket utilizes a mechanical double-thread quilting process with a tighter 5cm stitch spacing; it shows no interlayer separation even after five years of immersion, ensuring superior stability in long-term submerged conditions.

2. Raw Material Composition Differences: Generic products from competitors often have low carbon black content, leading to rapid aging under outdoor sun exposure. Our specialized canal product uses a standardized 2.5% carbon black formulation and incorporates erosion-resistant fibers. This increases resistance to runoff shear forces by 35% and allows the material to withstand perennial flood flow velocities of up to 3.8 m/s.

3. Installation Suitability Differences: Competitor rolls are typically 3 meters wide, resulting in cutting waste exceeding 15% when used on narrow field canals. We stock a standard 2-meter narrow width, keeping cutting waste under 3%. Additionally, the roll weight is optimized for single-person slope installation, making it ideal for field sites where heavy machinery access is unavailable.

4. Seepage Control Differences: Competitor products rely solely on the bottom liner for waterproofing, leading to high leakage rates at corners. Our product features integrated edge finishing where the fabric layer and bottom liner are cut simultaneously; the overlap joints include a built-in watertight seal, eliminating the need for additional waterproofing strips.

Quality Assurance

1. Comprehensive Three-Tier Quality Inspection: Raw materials undergo verification for HDPE liner density and filament tensile strength upon arrival. During production, quilting stitch integrity is tested via sampling every 30 minutes. Finished rolls undergo random inspections for water permeability and wet-dry cycle aging; non-conforming products are scrapped immediately and never enter the market.

2. Authoritative Compliance Reports: Each batch of Canal Protection Concrete Blanket comes with a national standard test report for geosynthetic-cement composite materials and a non-toxicity report for water-contact hydraulic products. These documents facilitate direct submission for project supervision and soil/water conservation acceptance in farmland irrigation projects, and the product supports random on-site re-inspection by third parties.

3. Warranty Commitment: A written 12-year warranty applies to standard dry-land ditches, and an 8-year warranty applies to ditches subject to perennial water immersion. In the event of interlayer cracking or leakage not caused by human-induced sharp punctures or external force, free on-site repair technical plans and auxiliary repair materials will be provided.

4. Project Traceability: All ditch project products come with production batch traceability codes, allowing for the retrieval of production parameters and quality inspection data, thereby meeting the requirements for lifelong traceability management in water conservancy projects.

Usage and Maintenance Recommendations

Installation and Maintenance

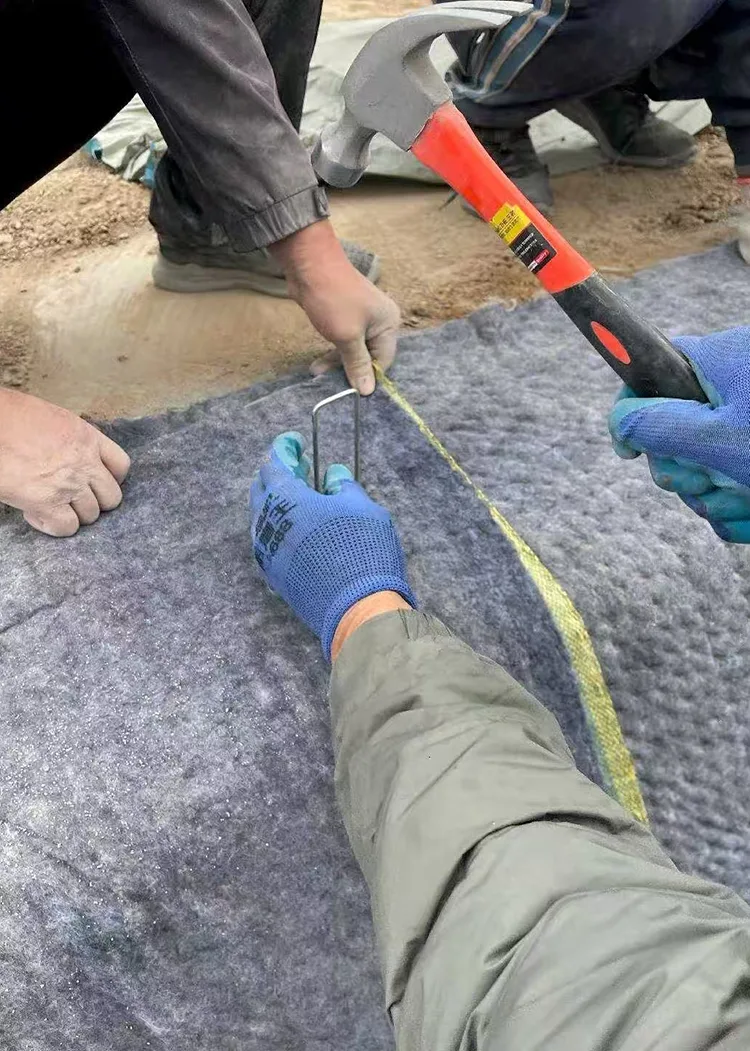

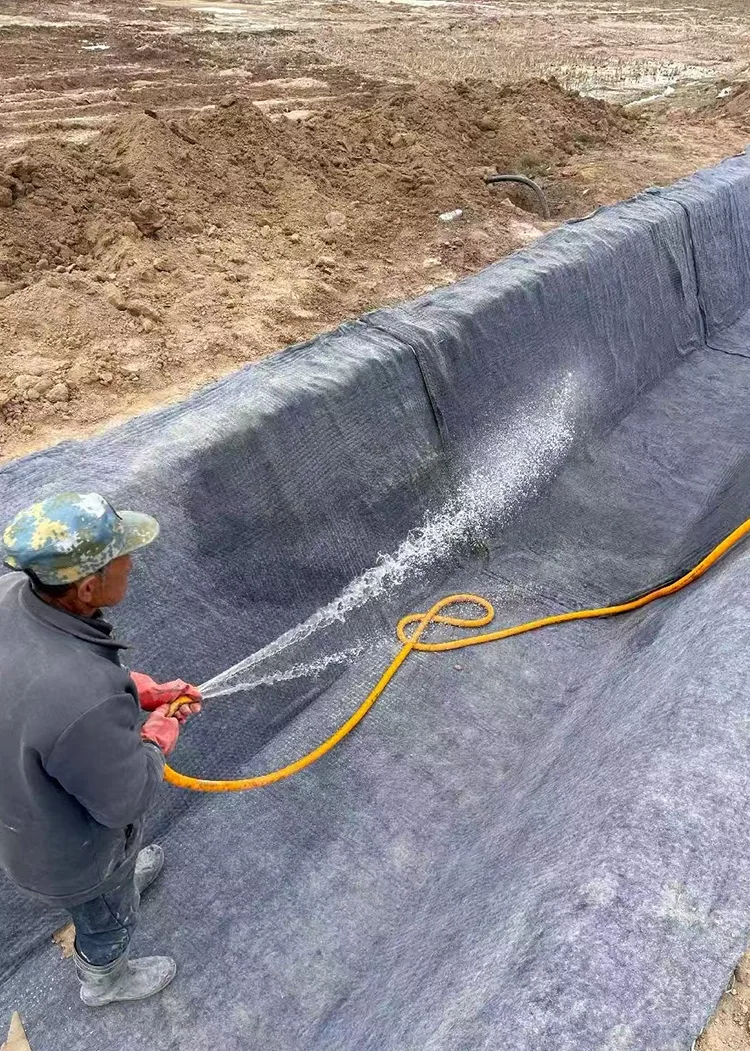

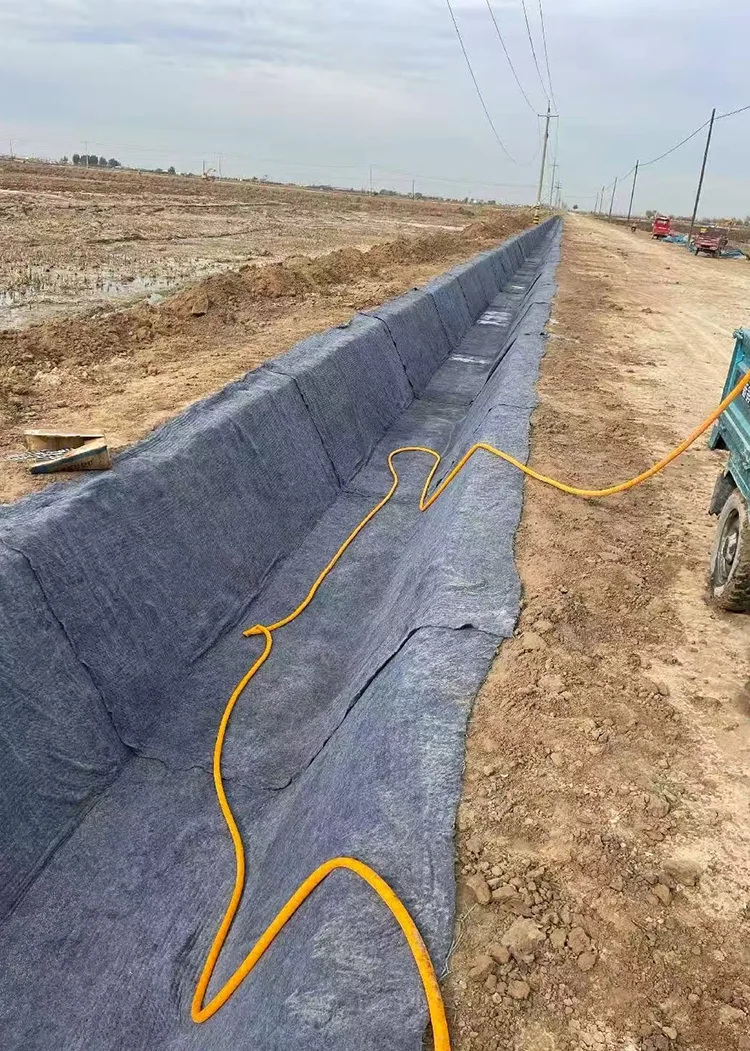

Installation must proceed from upstream to downstream, overlapping in the direction of water flow with an overlap width of at least 15 cm; overlapping against the flow is prohibited to prevent water seepage into the seams. Anchor points at the top and bottom of the ditch should be spaced at 0.8 m intervals to withstand lateral soil thrust. For curing via watering, low-pressure mist spraying is preferred; in windy outdoor conditions, avoid watering during the high heat of midday to prevent rapid surface moisture loss and subsequent surface dusting or crumbling.

Post-Installation O&M

Clear large rubble and dead branches from the ditch annually before the flood season to prevent hard objects from being swept against the blanket surface by floodwaters. Excavator buckets or desilting machinery teeth must not scrape directly against the hardened surface layer. Fine, hair-like surface cracks require no treatment; these result from normal soil settlement and deformation and will not propagate or cause leakage. Localized damage can be repaired by heat-fusing a small patch of the same material, eliminating the need for large-scale rework.

FAQ

Q1: Will weeds grow up through the Canal Protection Concrete Blanket after installation?

The bottom impermeable membrane completely blocks weed roots in the underlying soil from growing upward, and the surface fabric features a dense, fixed-pore structure that prevents weed shoots from penetrating the dual-layer system. Compared to mortared stone ditches, annual weed maintenance costs are reduced by 90%.

Q2: Will winter frost heave crack the blanket in irrigation ditches located in northern frozen soil regions?

The product's elongation at break accommodates the frost heave deformation of frozen soil; it flexes with the soil's slight expansion and contraction without suffering brittle cracking. Localized cracks appear only if soil settlement exceeds 10 cm—conditions easily remedied by simple repairs—offering a far superior performance compared to the extensive cracking often seen in cast-in-place concrete.

Q3: Will long-term accumulation of turbid sediment in the channel abrade the surface of the mat?

Not in the short term; the wear-resistant woven surface layer withstands daily sediment abrasion. For high-sediment flood discharge channels, simple desilting after the annual flood season is recommended to prevent prolonged sediment buildup from causing localized surface abrasion; under normal use, no significant wear occurs over an eight-year period.

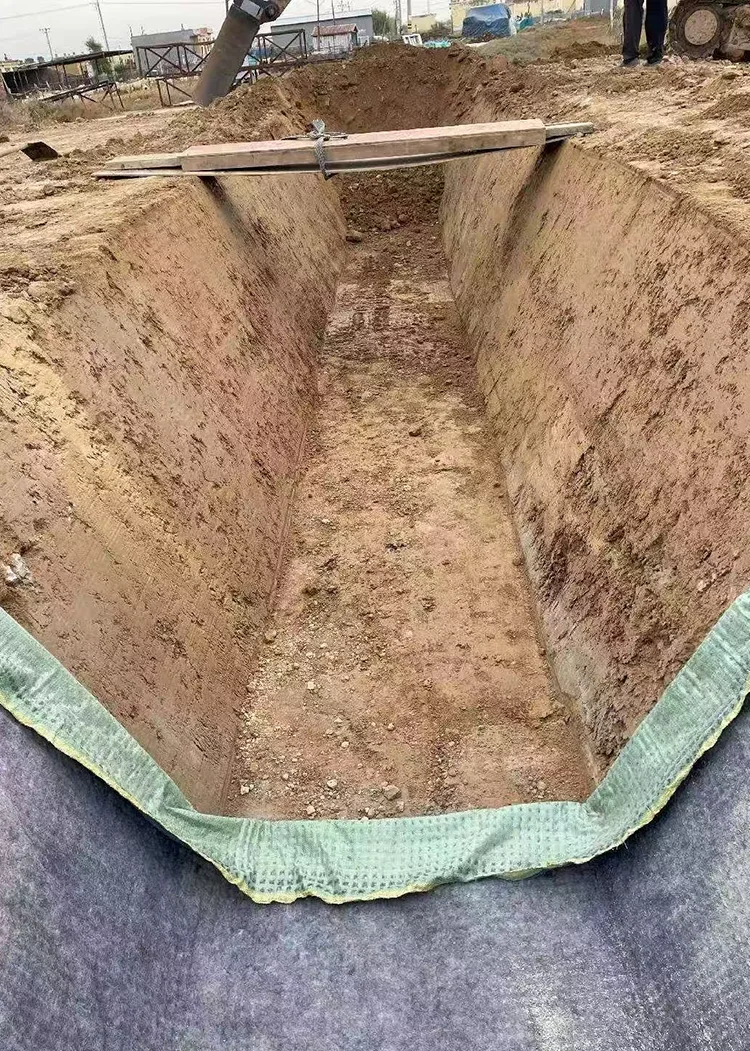

Q4: Can it be laid directly onto a slope of loose, undisturbed soil?

No. Loose-soil slopes must first be compacted to a degree of at least 0.85, and stones larger than 1 cm in diameter must be removed to prevent puncturing the underlying impermeable membrane; laying the product directly on loose soil increases the risk of slope slippage later on.
