Tailings Pond Geomembrane Liner

Tailings Pond Geomembrane Liner is the most environmentally risky supporting project in the mining production process. Ordinary civilian anti-seepage membranes and fishpond anti-seepage membranes, due to their insufficient formula strength, poor corrosion resistance, and weak puncture resistance, cannot adapt to the harsh working conditions of tailings and slag, such as sharp puncturing by tailings, corrosion by acid and alkali waste liquids, long-term load settlement, and extreme temperature differences in the open air. Once put into use, they are prone to membrane rupture and leakage, membrane aging and degradation, causing groundwater pollution, environmental pollution exceeding standards, and slope instability, etc., a series of engineering hazards.

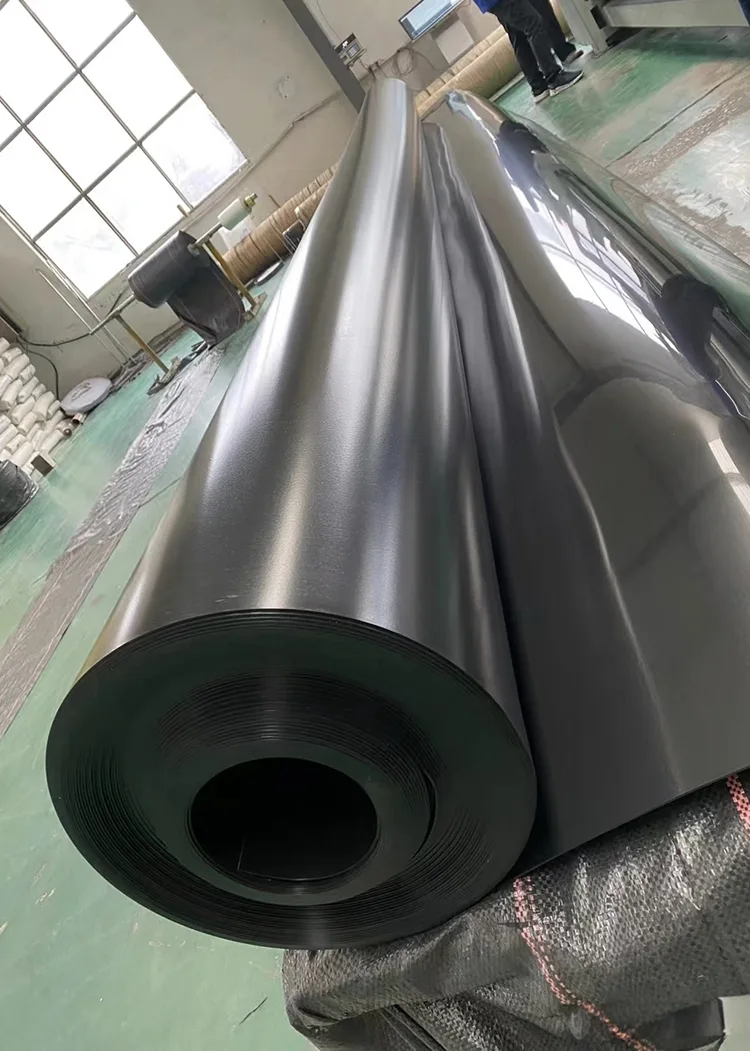

Tailings Pond Geomembrane Liner is an industrial-grade high-density polyethylene anti-seepage liner specially developed for tailings pond conditions. Different from ordinary hydraulic membrane materials, it uses high-purity new resins combined with multiple industrial-grade modified additives, and is formed through high-precision extrusion and blow molding technology. The product has two versions for concealed burial and open-air sealing and closure conditions, specifically addressing industry pain points such as infiltration of tailings pond leachate, diffusion of heavy metals, slope erosion, and membrane aging and damage. With its high strength, strong corrosion resistance, and long service life, it is widely used in various new, expansion, and closure projects of metal and non-metal mine tailings, as well as ecological restoration projects after closure, and is the standardized preferred material for water and soil environmental protection in mines.

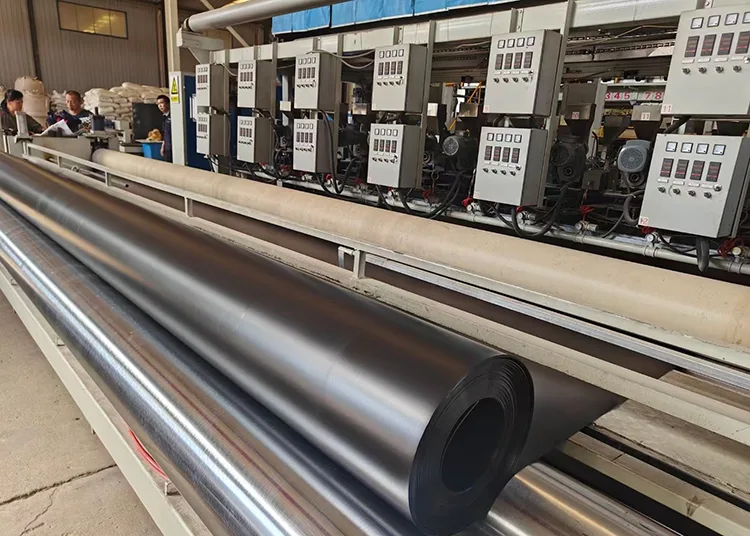

Industrial-grade Raw Material Formula and Molding Process

The Tailings Pond Geomembrane Liner does not add recycled waste materials. The entire process uses brand-new high-density polyethylene resin as the base, combined with industrial-grade anti-ultraviolet agents, antioxidants, high-concentration carbon black, and special anti-corrosion additives for acid and alkali resistance. The raw material ratio has been repeatedly adjusted based on the corrosion conditions of the mine. It adopts a large-scale extrusion blow molding integrated molding process. The membrane body is uniform in thickness, dense in structure, free of pinholes and impurities. This ensures that inferior membrane materials prone to puncturing, aging, and corrosion are completely eliminated from the source. The product is divided into two major working condition versions. The buried type is suitable for long-term underground non-light exposure anti-seepage, while the anti-aging exposed type is suitable for open-air exposure on the reservoir surface and alternating temperature conditions throughout the year, fully meeting the construction needs of all scenarios of the tailings pond.

Mine Operation-specific Thickness Selection System

1. Simple diversion and drainage operation conditions (1.0mm, 1.2mm)

Suitable for auxiliary supporting projects such as temporary water interception ditches, diversion channels, and small-scale simple filtrate collection ponds in tailings dams. The load pressure is small, and the amount of mine residue accumulation is low. The core functions are foundation anti-seepage and wastewater drainage, meeting the temporary mine drainage and anti-seepage construction requirements.

2. Conventional tailings main project (1.5mm, 2.0mm)

This is the mainstream compliant specification for domestic small and medium-sized tailings dams. It is suitable for the overall anti-seepage of the tailings dam bottom and the full coverage anti-seepage of the slope of the conventional tailings dam. It can cope with conventional tailings settlement, slight mine residue puncturing, and moderate acid-base corrosion, meeting the majority of daily environmental protection and anti-seepage acceptance standards of mines.

3. High-risk heavy-load corrosion conditions (2.5mm, 3.0mm)

Suitable for large-scale standardized tailings dams, highly acidic and alkaline corrosive tailings, mine residue with many sharp edges, large loading drop difference, and frequent mechanical operations. The super-thickened structure can resist high-intensity puncturing, heavy pressure settlement, and strong corrosive waste liquid immersion, and is suitable for high-grade environmental protection anti-seepage projects.

4. Exposed surface closure and sealing conditions (anti-aging customized model)

For tailings dam closure and sealing, and the entire exposed surface of the tailings dam area, the high content anti-UV and anti-aging formula is upgraded. It can resist strong sunlight exposure and alternating high and low temperatures erosion for a long time, avoiding short-term powdering, cracking, and failure of the exposed membrane body, and is suitable for long-term closure protection of mines.

Core Industrial Performance Indicators and Engineering Value

1. Ultra-low seepage coefficient

The tailings pond geomembrane liner has a permeability coefficient of ≤ 1×10⁻¹³ cm/s, possessing an extremely tight and leak-proof capability. It can completely isolate tailings leachate, heavy metal ions, and mine wastewater, completely blocking the downward infiltration of pollutants and preventing them from polluting the soil and groundwater. This solves the core problem of environmental leakage in mines and ensures that the water and soil environment in the mining area meets standards.

2. High mechanical strength

The tensile strength, tear resistance, and top-breaking resistance are far superior to ordinary geotextiles. It can perfectly adapt to complex working conditions such as long-term loading and settlement of the tailings pond, soil creep of the slope, and construction machinery compaction. The force is evenly distributed, making it less likely to tear or be damaged, and suitable for the dynamic deformation environment of mines.

3. Strong corrosion resistance

It has excellent resistance to acid and alkali, heavy metal salts, and industrial waste liquid erosion, and can be immersed in various metal and non-metal tailings slurries, corrosive leachate, etc. for a long time without experiencing swelling, degradation, cracking, or perforation. It is suitable for special corrosive working conditions in mines.

4. Ultra-long service life

The exclusive anti-UV and anti-aging formula significantly delays the aging and degradation rate of the membrane body. The service life in open-air exposed conditions can reach 10-18 years, and the service life underground and buried with light protection can exceed 30 years. It is also suitable for extremely cold environments, with no cracking or splitting at -40℃ low temperatures, and can withstand freeze-thaw cycles of high-altitude areas.

5. Ultra-high puncture resistance

The membrane structure is dense and tight, with outstanding impact resistance and puncture resistance. It can effectively resist the squeezing and puncturing of sharp mineral residues and crushed stones, avoiding membrane rupture and leakage caused by tailings loading and material sliding. It is suitable for construction and operation environments with a large amount of hard debris and heavy loads in mines.

Diverse Application Scenarios

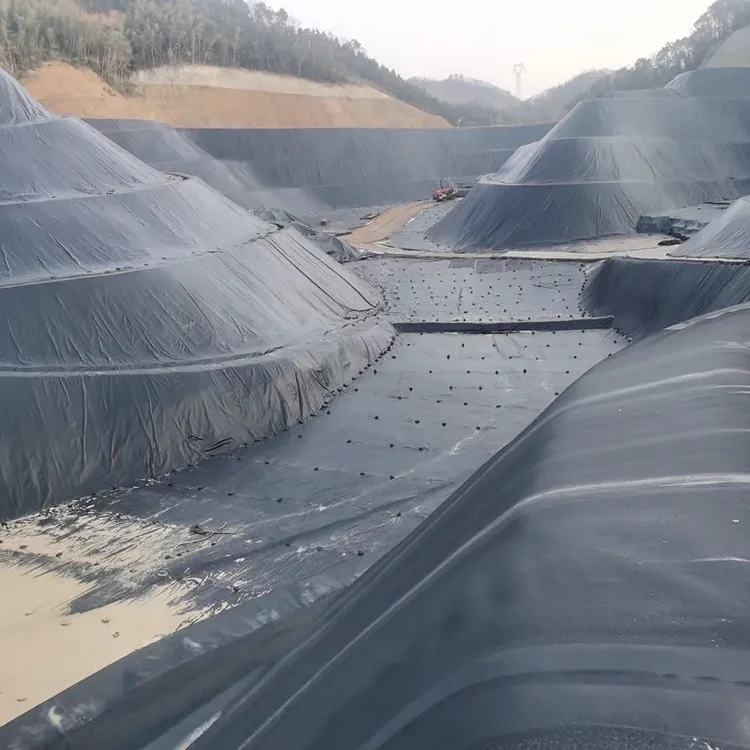

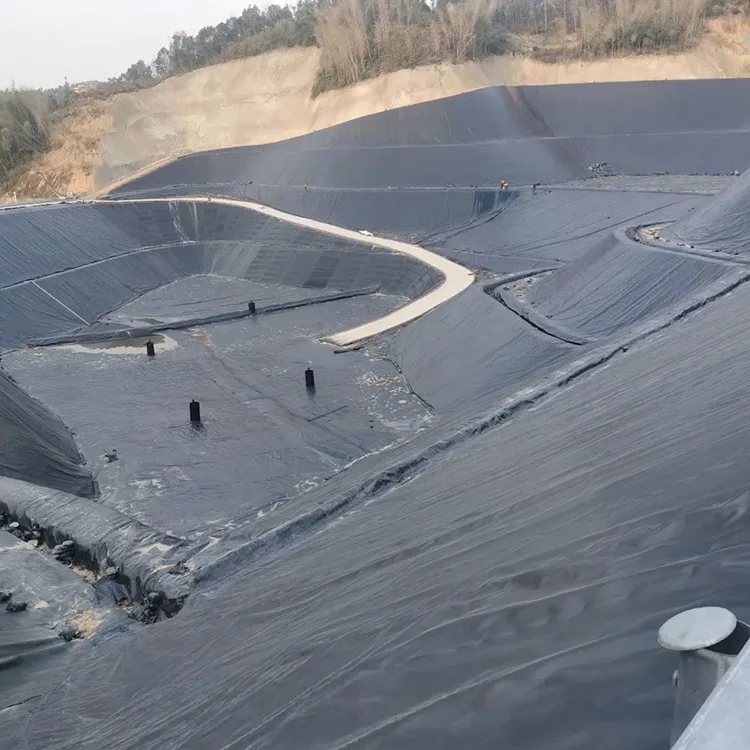

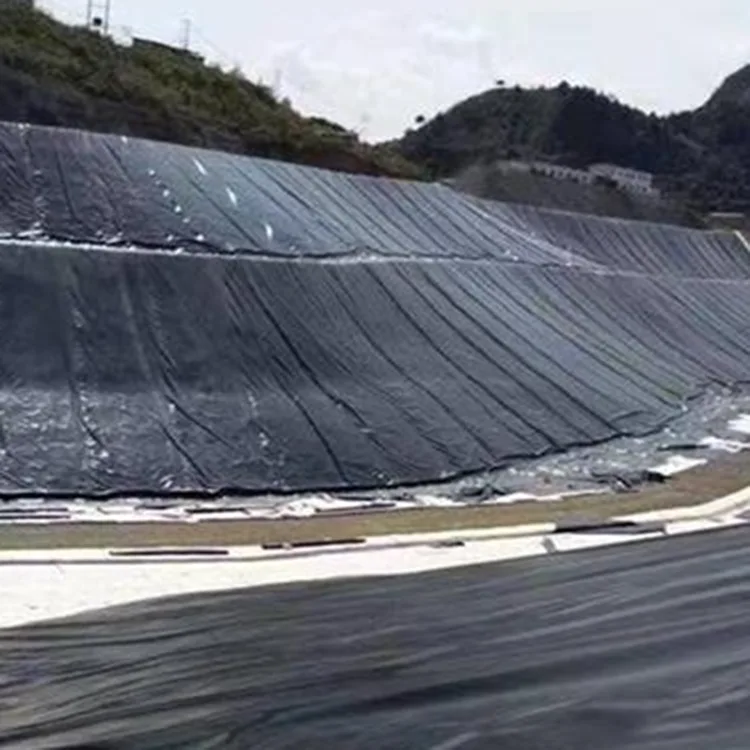

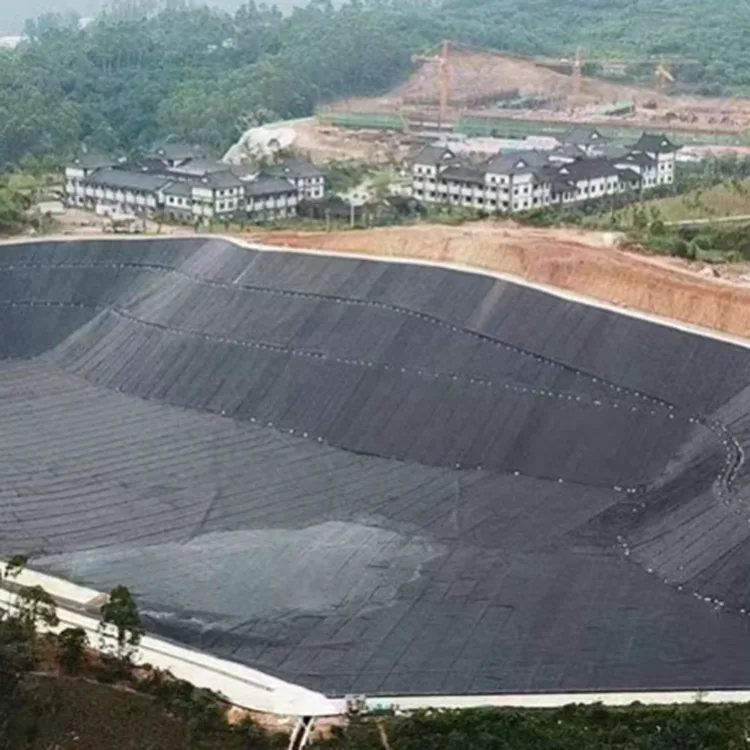

1. Various tailings pond remediation projects

Tailings Pond Geomembrane Liner is widely applicable to various mines such as iron mines, gold mines, aluminum mines, coal mines, and sand and gravel yards. It is used for anti-seepage of the bottom of tailings ponds, overall anti-seepage of slopes, covering of the pond surface for closure and ecological restoration, as well as anti-seepage isolation construction of supporting structures such as leachate regulation ponds, collection wells, and diversion pipe galleries.

2. Solid waste and hazardous waste containment anti-seepage projects

Suitable for overall anti-seepage isolation of industrial waste residue storage sites, slag storage sites, steel slag storage sites, and waste residue storage sites for smelting. It effectively prevents the infiltration of industrial solid waste leachate, eliminates secondary water and soil pollution, and meets the environmental protection construction standards for solid waste disposal.

3. Industrial environmental water treatment projects

Can be used for anti-seepage of landfill sites, industrial wastewater treatment regulation ponds, emergency accident ponds, wastewater sedimentation ponds, chemical waste liquid collection ponds, etc. to achieve closed isolation of wastewater and waste liquid, avoiding risks of water body leakage pollution.

4. Mining site supporting protection projects

Suitable for anti-seepage construction of drainage channels and diversion channels of tailings ponds, anti-seepage isolation of mountain slope protection, construction of rainwater collection anti-seepage systems for mining sites, and improvement of the overall waterproof, anti-seepage, and drainage protection system of the mining site.

Real Mine Grounding Project Case

1. Project Overview

This project is an environmental protection treatment project for the tailings dam of a metal mine in Yantai, Shandong Province. The construction was completed in April 2022. The total area of the reservoir is 180 acres, including the main tailings storage area, leachate collection ponds, interception and drainage ditches, and a complete set of supporting systems. The project uses 2.0mm thick anti-aging HDPE tailings-specific anti-seepage membrane, combined with long and short filament geotextile protective layers and bentonite waterproof blankets to form a composite anti-seepage structure. The project is located in an open-pit mining environment. The summer temperature can reach 38℃, while the winter temperature can drop as low as -15℃. The annual rainfall is abundant, and the tailings water body contains trace acidic and alkaline corrosive media. The original reservoir soil layer has strong permeability and long-term groundwater pollution and environmental standard violation risks.

2. Three-Year Long-Term Measured Usage Effect

The anti-seepage performance is stable and durable. Since the membrane was laid and operated for three years, the membrane body has no aging, powdering, cracking, or perforation and damage. The welds at the bottom and slope of the reservoir are firmly and tightly welded, without weld detachment or leakage hazards. The tailings leachate is completely collected in a sealed manner. The pollutant indicators at the groundwater monitoring points continue to meet standards, completely solving the original leakage environmental hazards of the reservoir area. The recovery rate of leachate has significantly increased, and there is no underground leakage loss. The investment in wastewater treatment agents and equipment energy consumption in the factory has decreased by 32% compared to the previous year, eliminating the additional engineering costs for regular leakage investigation and leak repair.

The stability of slope protection is excellent. During the rainy season, strong rainfall erosion does not cause slippage, bulging, or tearing problems. In the freeze-thaw cycle environment, the membrane body does not contract or crack. It can effectively adapt to the compression of tailings loading and the settlement deformation of the soil. Long-term contact with acidic mine slurry leachate does not cause corrosion, degradation, swelling, or damage to the membrane body. The corrosion resistance and wear resistance against mine slag are far superior to ordinary anti-seepage materials.

Customer's Genuine Evaluation

"Previously, the soil layer of the tailings pond was highly permeable, and the seepage liquid would seep downward, which not only posed great environmental pressure but also required a significant amount of funds for annual rectification and leakage prevention. After laying this tailings-specific anti-seepage membrane for three years, the anti-seepage effect has remained stable, and all environmental tests have been qualified. We were previously concerned that the mine slag was sharp and prone to corrosion from sunlight, which could easily cause the membrane to rupture. However, in actual use, the membrane body was sturdy and durable, and the welds did not have any problems. Whether it is during daily operation or in the later closure and renovation process, this anti-seepage solution has a very high cost-effectiveness."

--- Mr. Zhang, Project Manager of Tailings Pond Project

FAQ

Q1: Why can't the tailings pond geomembrane liner be replaced by ordinary fish ponds or water engineering anti-seepage membranes?

Ordinary water engineering membranes and fish pond membranes are of civilian-grade materials and do not have industrial-grade corrosion-resistant and anti-mineral slag penetration formulas. They are only suitable for neutral freshwater environments. Tailings ponds are subject to severe working conditions such as acid-base mineral slurry corrosion, sharp mineral slag puncturing, long-term heavy loading pressure, and open-air aging erosion. Ordinary membrane materials will corrode, crack, and leak within a short period of time, making them unable to pass the environmental protection acceptance of the mining industry and requiring the use of industrial-grade thickened tailings-specific anti-seepage membranes.

Q2: Are the membrane materials selected for new tailings ponds and closed and sealed tailings ponds the same?

It's different. For newly constructed tailings storage facilities, the bottom and slopes can be covered with long-term soil layers. Conventional thickened anti-seepage membranes can be selected; for closed and sealed facilities, and areas with exposed surfaces that are exposed to direct sunlight, rain, and temperature differences for a long time, high-added anti-aging customized models must be used to significantly increase the outdoor service life and meet the long-term environmental protection protection requirements of the mines.

Q3: Will there be any welding defects or leakage risks after the anti-seepage membrane welding of the tailings storage facility?

The standard hot-melt welding construction will not cause leakage. The tailings project adopts the double-track hot-melt welding process. The weld strength is higher than the membrane body strength, suitable for tailings settlement and slight slope deformation. As long as the construction is avoided in low-temperature rainy days and the welding temperature and speed are strictly controlled, the formed weld seam can be stable for a long time and will not have problems such as welding detachment, cracking, or leakage.

Q4: In high-altitude mines with severe winter freeze-thaw, will the anti-seepage membrane crack and fail at low temperatures?

No. This tailings-specific membrane has undergone low-temperature modification treatment. It can withstand a minimum temperature of -40℃ in extremely cold environments. Even under freeze-thaw cycles, the membrane body still maintains good toughness and will not crack, shrink, or break. It can be adapted to the harsh working conditions of northern high-altitude mines in winter, such as frozen soil, ice formation, and repeated temperature fluctuations. The low-temperature anti-seepage performance is stable.

Q5: How many years can the tailings dam anti-seepage membrane be used normally?

Service life varies depending on the working conditions: the bottom of the dam, the buried and shaded area on the slope, without exposure to direct sunlight and aging effects, the service life can reach over 30 years; the open-air exposed sealing area on the dam surface, the anti-aging customized model can be used stably for 10-18 years, fully meeting the long-term protection cycle for mine production and operation, and closure ecological governance.

Q6: There are a large number of angular and slag particles in the tailings dam. How to avoid the membrane from being punctured and damaged?

For high-risk slag conditions, it is recommended to combine with geotextile protective layer for composite construction. At the same time, priority should be given to using 2.5mm and 3.0mm thick anti-puncture models. Before construction, level the base surface, remove oversized angular slag and sharp objects. From material selection and double-layer protection during construction, the potential risks of slag squeezing and puncturing the membrane can be completely avoided, ensuring the long-term stable operation of the anti-seepage system.
