Fish Pond Geomembrane Liner

Leakage is the most common and troublesome issue encountered during the construction of water features, artificial ponds, and water storage facilities. Ordinary waterproofing films often lack sufficient density and contain pinholes; after a short period of use, they begin to leak, necessitating frequent refilling and increasing operating costs. Some inferior materials degrade or leach harmful substances after prolonged immersion, polluting the water and compromising both the visual appeal and water safety. Additionally, overly rigid materials fail to conform to irregularly shaped pond structures and crack upon even slight foundation settlement, resulting in difficult and costly repairs.

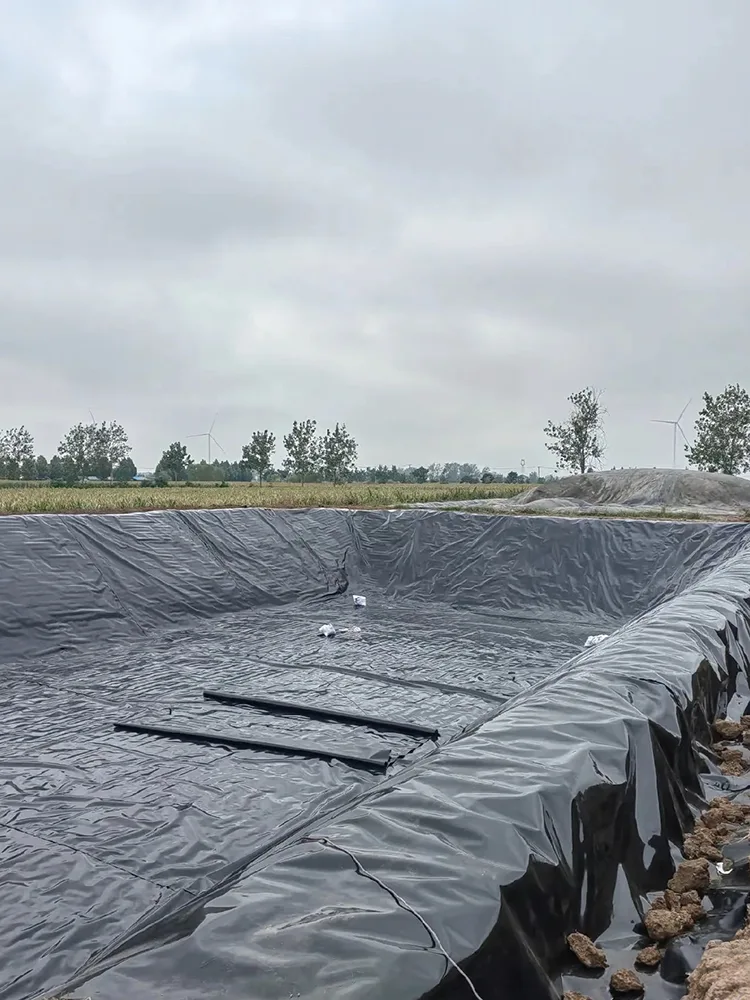

Our fish pond geomembrane liner is a specialized HDPE impermeable geomembrane developed specifically for water storage and landscape projects, manufactured in strict accordance with national geomembrane standards. Featuring a dense structure and high physical strength, the liner offers multiple benefits, including zero leakage, resistance to long-term immersion and aging, and eco-friendly, non-toxic properties. It effectively retains water and maintains stable levels while isolating silt and impurities to safeguard water quality. Its wide-format design minimizes on-site seaming requirements and accommodates both standard ponds and irregularly shaped landscape water features.

Product Positioning and Applications

1. Product Definition

Also known as landscape pond liners, artificial lake geomembranes, or reservoir waterproofing membranes, this product is a specialized impermeable geomembrane material for hydraulic engineering. It is designed for comprehensive waterproofing and seepage control on the bottoms and slopes of artificial water bodies. Distinct from ordinary packaging films or basic waterproofing sheets, it meets engineering-grade durability and impermeability standards.

2. Problem Solving

It effectively addresses issues such as pond leakage, abnormal water level drops, turbidity caused by the mixing of water and soil, and water contamination from stirred-up silt. Its material stability ensures resistance to underwater corrosion and exposure to the elements (sun and rain), guaranteeing long-term, reliable pond operation.

3. Scope of Application

Suitable for a wide range of settings—including residential landscape ponds, ornamental fish ponds, artificial lakes, small water storage tanks, rainwater harvesting ponds, fire-fighting reservoirs, and ecological waterways—covering applications in home landscaping, municipal engineering, and agricultural water storage.

Raw Materials and Production Process

1. Selection of Core Raw Materials

The Tongfu Fish Pond Geomembrane Liner is manufactured using virgin High-Density Polyethylene (HDPE) resin. It contains no recycled waste or low-quality additives. The high purity and stable molecular structure of the raw material ensure superior impermeability, water resistance, and environmental safety, making it ideal for long-term underwater use.

2. Integrated Molding Process

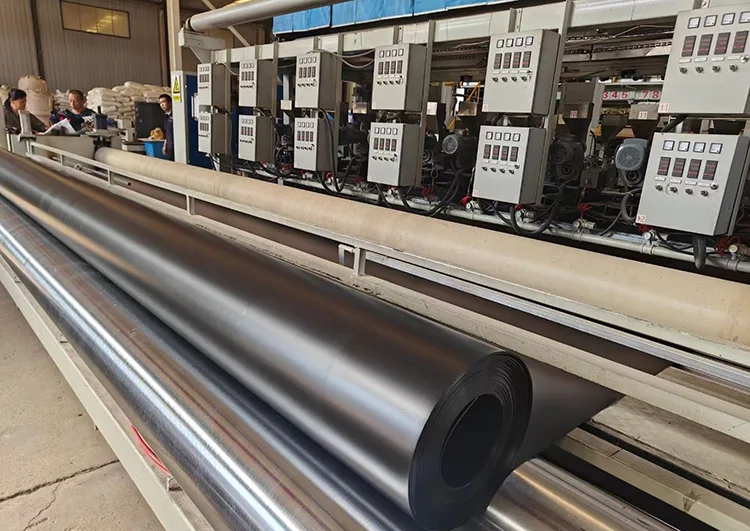

Produced via a high-temperature extrusion and calendering process, the liner is formed as a single, seamless sheet. It features uniform thickness and is free from internal delamination, hidden gaps, or surface defects such as sand holes and pinholes. The finished product offers excellent flatness and flexibility, providing sealing performance far superior to segmented composite films.

3. Suitability for Underwater Environments

HDPE is chemically stable; it does not dissolve, mold, rot, or naturally degrade during prolonged, full submersion in water. It withstands fluctuations in pH levels, silt corrosion, and microbial attack, maintaining consistent performance over years of use.

4. Safety and Environmental Compliance

The finished product is non-toxic and odorless. No harmful additives or heavy metals are used during production. It does not leach contaminants or alter water quality upon long-term contact, fully meeting safety standards for ornamental fish ponds, ecological water systems, and potable water storage.

Standards and Key Performance Parameters

We strictly adhere to the GB/T 17643-2011 National Standard for Geomembranes. We offer a comprehensive range of specifications and support custom cutting. All performance metrics have been professionally verified, ensuring suitability for pond projects of varying sizes and depths.

What are the practical advantages compared to standard waterproofing materials?

1. Superior impermeability, significantly reducing the need for refilling

The membrane features a dense, non-porous structure with a permeability coefficient that meets high national standards, effectively blocking water leakage at the source. Once installed, the water level remains stable, eliminating the need for frequent refilling; this conserves water resources while lowering the labor and water costs associated with daily maintenance.

2. Isolates impurities, maintaining long-term water clarity

A complete installation of the Tongfu Fish Pond Geomembrane Liner creates a total barrier between the water and the underlying soil or silt, preventing turbidity caused by churning soil or floating debris. Additionally, the material itself does not harbor harmful substances or algae growth, ensuring that landscape and ornamental fish ponds remain clear over the long term and enhancing their overall aesthetic appeal.

3. Resistant to water immersion and aging, ensuring a long service life

Designed specifically for long-term submersion, the liner withstands constant underwater exposure and silt corrosion. Enhanced with an anti-aging formula, it endures harsh outdoor conditions, including sunlight, wind, rain, and temperature fluctuations. Under normal installation and usage conditions, it offers a service life of over 10 years, reducing future renovation costs.

4. Puncture and deformation resistance, adapting to minor foundation shifts

The product boasts excellent tensile, tear, and puncture resistance, making it highly durable against friction and pressure from gravel, twigs, or sand at the pond bottom. It accommodates minor foundation settlement or deformation caused by temperature changes by stretching along with the movement, preventing cracks or leaks and ensuring a stable, reliable waterproofing system.

5. Easy installation, suitable for ponds of all shapes

The flexible material can be easily bent and cut to fit perfectly, whether for standard circular ponds or uniquely shaped, irregular landscape pools. Wide-format specifications minimize the number of seams required, simplifying welding and bonding processes, shortening the overall construction schedule, and reducing installation complexity.

Practical Advice on Selection and Installation

1. Thickness Selection Guide

For small garden ponds and ornamental fish ponds, 0.75mm or 1.0mm specifications are preferred; a thickness of 1.2mm is recommended for medium-sized landscape ponds and rainwater collection tanks; for large artificial lakes, deep-water ponds, and municipal water projects, the 1.5mm heavy-duty version is advised to ensure superior puncture resistance and durability.

2. Pre-installation Preparation

Before installation, clear the pond bottom and slope areas of sharp stones, tree roots, and hard debris to prevent punctures; level the subgrade soil to minimize irregularities, providing a smooth foundation for the geomembrane.

3. Seaming and Sealing Essentials

Minimize seams by using wide-format sheets; where overlapping is necessary, weld or bond according to engineering standards to ensure a tight seal—this is crucial for preventing localized leaks. Leave some slack when laying on slopes to accommodate thermal expansion and contraction, preventing damage from temperature-induced stress.

4. Long-term Outdoor Maintenance

Outdoor ponds require little maintenance; simply avoid scratching the membrane surface with sharp tools during daily use. The material withstands normal temperature fluctuations (cold winters and hot summers) without extra protection; just clear away floating debris periodically.

FAQ

1. Will it degrade or develop an odor after long-term immersion in water?

The Tongfu Fish Pond Geomembrane Liner is manufactured from virgin HDPE resin, offering stable chemical properties. Long-term water immersion will not cause rotting, mold, odors, or the leaching of harmful substances, nor will it contaminate the water—making it ideal for long-term use in fish ponds and ecological landscape ponds.

2. How do I choose between different thicknesses?

Greater thickness provides superior puncture and aging resistance. Thinner versions are suitable for shallow areas and small residential ponds; however, for deep water, pond bottoms with gravel, or large outdoor water features, a thicker model is essential for greater peace of mind.

3. Is the geomembrane prone to cracking if slight ground settlement occurs?

The product features high elongation at break and excellent ductility; the membrane can stretch to accommodate minor foundation settlement or slight ground deformation without cracking or leaking under normal conditions. If significant foundation settlement is anticipated, it is recommended to reinforce the foundation beforehand.

4. Can this impermeable membrane be used directly for ornamental fish ponds?

Yes, absolutely. The product meets environmental standards, is non-toxic, and does not leach harmful substances; it is safe for fish, shrimp, and aquatic plants, making it a mainstream choice for waterproofing ornamental and ecological fish ponds.

5. Can the wide-format sheets be cut to fit specific site dimensions?

Custom cutting is available. We can pre-cut the material based on the pond's actual dimensions and shape, or ship full rolls for on-site processing by the installation team; the cut edges will not crack or unravel, ensuring the overall waterproofing integrity remains intact.

6. How long does it take for the product to show signs of aging or damage when exposed to direct outdoor sunlight?

The product is formulated with specialized UV-resistant and antioxidant additives optimized for outdoor use. When used for standard outdoor water containment, it offers a stable service life of over 10 years—far exceeding that of ordinary plastic films.
